MT 1009 24 Monifold Multi Quick Coupling

Description

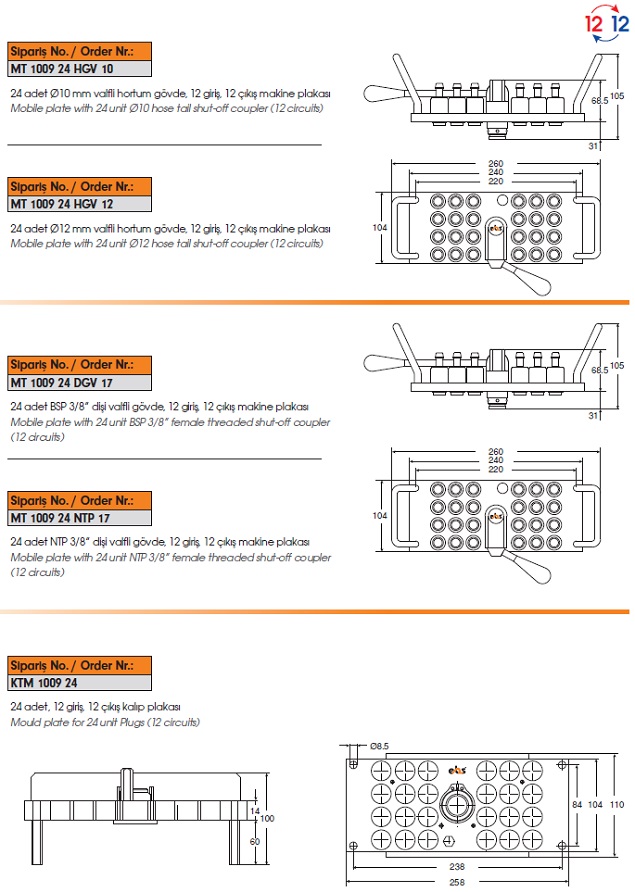

MT 1009 24 Monifold Multi Quick Coupling

EBS monifold multi quick coupling systems are applicable for quick changing of injection moulding and die cast equipments. This system avoids from the wrong connections in a quick and simple way.
EBS Multi coupling connection is starting from 3 circuits and it may increase up to 12 circuits + according to customer needs.
Water couplers for max 10 bar and 180°C and also there exist manuel multi couplers.

EBS Standart Multi Coupling Ranges
M1009 (Flow Size : 9 mm)

According to the requested coupler quantity:
6 couplers : 3 circuits
8 couplers : 4 circuits
10 couplers : 5 circuits
12 couplers : 6 circuits
16 couplers : 8 circuits
20 couplers : 10 circuits
24 couplers : 12 circuits
